Panasonic Electronic Components

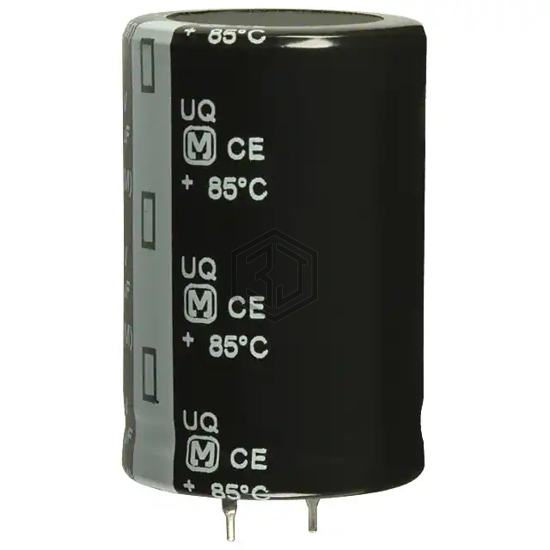

CAP ALUM 2700UF 20% 160V SNAP
EET-UQ2C272DA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 2700UF 20% 160V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 160 V, package / case Radial, Can - Snap-In.
In Stock: 4,458
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | 74mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5.45 A @ 120 Hz |
| Ripple Current @ High Frequency | 7.63 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-UQ2C272DA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43305A2278M62 | EPCOS - TDK Electronics | CAP ALUM 2700UF 20% 200V SNAP | 83% | View |
| LGN2Z272MELC50 | Nichicon | CAP ALUM 2700UF 20% 180V SNAP | 71% | View |
| LKG1J272MESCCK | Nichicon | CAP ALUM 2700UF 20% 63V SNAP | 58% | View |
| 381LX272M100K452 | Cornell Dubilier Electronics (CDE) | CAP ALUM 2700UF 20% 100V SNAP | 57% | View |
| MAL215872272E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2700UF 20% 80V SNAP | 51% | View |
| EKMH101VSN272MR45S | United Chemi-Con | CAP ALUM 2700UF 20% 100V SNAP | 51% | View |
Submit your RFQ for EET-UQ2C272DA and get a quote within 24 hours.
