Panasonic Electronic Components
CAP ALUM 2200UF 20% 160V SNAP

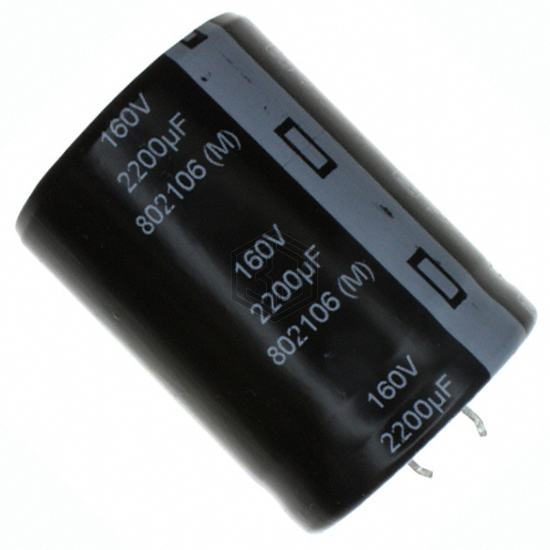

EET-UQ2C222KA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 2200UF 20% 160V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 160 V, package / case Radial, Can - Snap-In.
In Stock: 1,998
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | 90mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.78 A @ 120 Hz |
| Ripple Current @ High Frequency | 6.692 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-UQ2C222KA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43501A1228M67 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 160V SNAP | 94% | View |
| LLG2Z222MELC35 | Nichicon | CAP ALUM 2200UF 20% 180V SNAP | 93% | View |
| MAL225922222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 200V SNAP | 89% | View |
| 200MXG2200MEFCSN30X60 | Rubycon | CAP ALUM 2200UF 20% 200V SNAP | 79% | View |
| B43305E2228M82 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 250V SNAP | 76% | View |
| LGN2Z222MELB50 | Nichicon | CAP ALUM 2200UF 20% 180V SNAP | 74% | View |
Submit your RFQ for EET-UQ2C222KA and get a quote within 24 hours.
