Panasonic Electronic Components
CAP ALUM 560UF 20% 450V SNAP

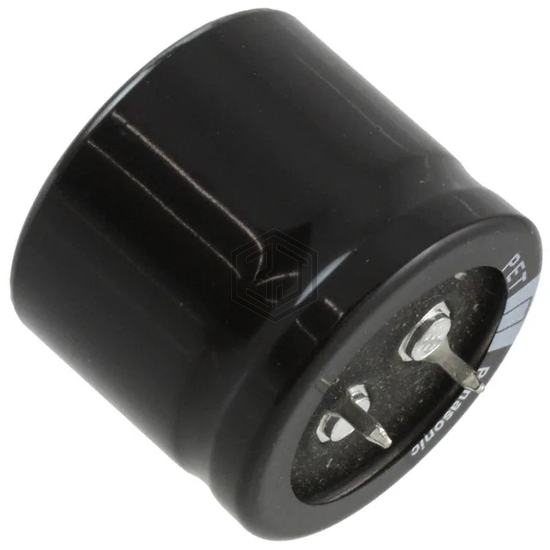

EET-HD2W561KJ is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 560UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 1,417
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.9 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.66 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-HD2W561KJ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43545A5567M000 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 450V SNAP | 84% | View |
| EKMM251VSN561MR30S | United Chemi-Con | CAP ALUM 560UF 20% 250V SNAP | 80% | View |
| SLP561M220E3P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 220V SNAP | 75% | View |
| 100ZLJ560M18X31.5 | Rubycon | CAP ALUM 560UF 20% 100V RADIAL | 73% | View |
| 63ZLH560MEFC12.5X30 | Rubycon | CAP ALUM 560UF 20% 63V RADIAL | 68% | View |
| 80ZLJ560MGC16X31.5 | Rubycon | CAP ALUM 560UF 20% 80V RADIAL | 63% | View |
Submit your RFQ for EET-HD2W561KJ and get a quote within 24 hours.
