Panasonic Electronic Components
CAP ALUM 270UF 20% 450V SNAP

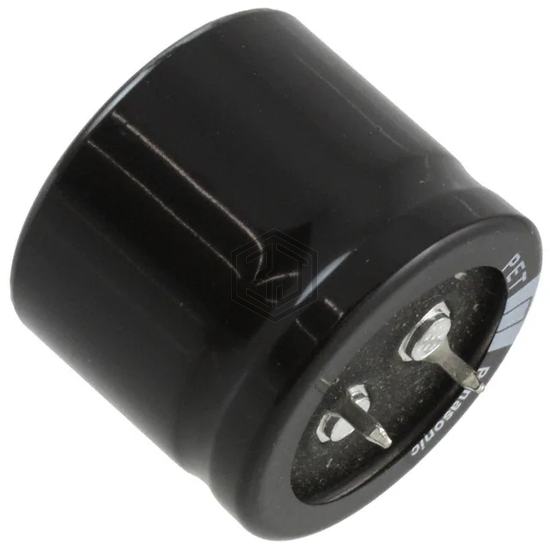

EET-HD2W271KJ is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 270UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 5,361
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.19 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.666 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-HD2W271KJ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMM451VNN271MQ60S | United Chemi-Con | CAP ALUM 270UF 20% 450V SNAP | 99% | View |
| LGG2W271MELC25 | Nichicon | CAP ALUM 270UF 20% 450V SNAP | 96% | View |
| EKMH401VSN271MR45U | United Chemi-Con | CAP ALUM 270UF 20% 400V SNAP | 92% | View |
| 400MXG270MEFCSN30X30 | Rubycon | CAP ALUM 270UF 20% 400V SNAP | 87% | View |
| 475MXH270MEFCSN25X55 | Rubycon | CAP ALUM 270UF 20% 475V SNAP | 84% | View |
| B43544B6277M080 | EPCOS - TDK Electronics | CAP ALUM 270UF 20% 500V SNAP | 84% | View |
Submit your RFQ for EET-HD2W271KJ and get a quote within 24 hours.
