Panasonic Electronic Components

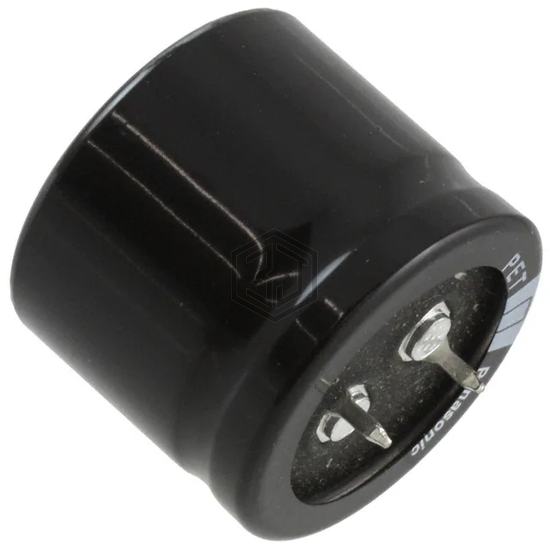

CAP ALUM 220UF 20% 450V SNAP
EET-HD2W221KJ is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 220UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 5,636
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.4 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-HD2W221KJ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL209427221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 450V SNAP | 94% | View |
| PG2G221MNN2541 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 92% | View |
| EKMH351VNN221MQ40M | United Chemi-Con | CAP ALUM 220UF 20% 350V SNAP | 90% | View |
| 420MXH220MEFC25X30 | Rubycon | CAP ALUM 220UF 20% 420V SNAP | 86% | View |
| PL2W221MND2530 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 85% | View |
| ELXS3B1VSN221MQ25S | United Chemi-Con | CAP ALUM 220UF 20% 315V SNAP | 84% | View |
Submit your RFQ for EET-HD2W221KJ and get a quote within 24 hours.
