Panasonic Electronic Components
CAP ALUM 560UF 20% 420V SNAP

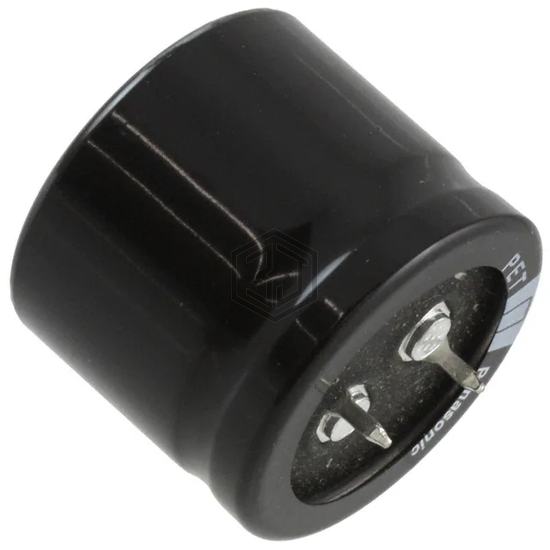

EET-HD2S561KJ is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 560UF 20% 420V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 420 V, package / case Radial, Can - Snap-In.
In Stock: 7,030
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.9 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.66 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-HD2S561KJ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EET-HC2W561LA | Panasonic Electronic Components | CAP ALUM 560UF 20% 450V SNAP | 98% | View |
| 450MXK560MEFC35X40 | Rubycon | CAP ALUM 560UF 20% 450V SNAP | 92% | View |
| B43504A2567M82 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 77% | View |
| LKX2E561MESC25 | Nichicon | CAP ALUM 560UF 20% 250V SNAP | 75% | View |
| LAK2D561MELC25 | Nichicon | CAP ALUM 560UF 20% 200V SNAP | 66% | View |
| B41789K7567Q001 | EPCOS - TDK Electronics | CAP ALUM 560UF 40V RADIAL | 62% | View |
Submit your RFQ for EET-HD2S561KJ and get a quote within 24 hours.
