Panasonic Electronic Components

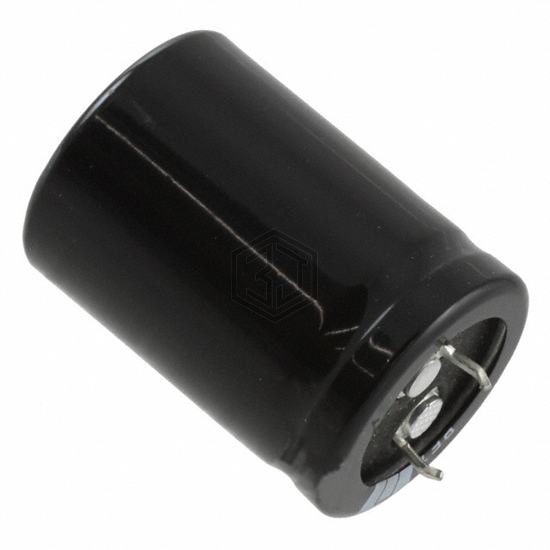

CAP ALUM 390UF 20% 420V SNAP
EET-HD2S391JJ is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 390UF 20% 420V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 420 V, package / case Radial, Can - Snap-In.
In Stock: 9,976
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.55 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.17 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-HD2S391JJ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LQSW6391MELB40 | Nichicon | CAP ALUM 390UF 20% 420V SNAP | 98% | View |
| LGN2G391MELA50 | Nichicon | CAP ALUM 390UF 20% 400V SNAP | 98% | View |
| EKMS451VSN391MR45S | United Chemi-Con | CAP ALUM 390UF 20% 450V SNAP | 93% | View |
| LGL2W391MELA50 | Nichicon | CAP ALUM 390UF 20% 450V SNAP | 89% | View |
| MAL225919391E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 390UF 20% 500V SNAP | 72% | View |
| LGJ2D391MELC | Nichicon | CAP ALUM 390UF 20% 200V SNAP | 72% | View |
