Panasonic Electronic Components
CAP ALUM 270UF 20% 420V SNAP

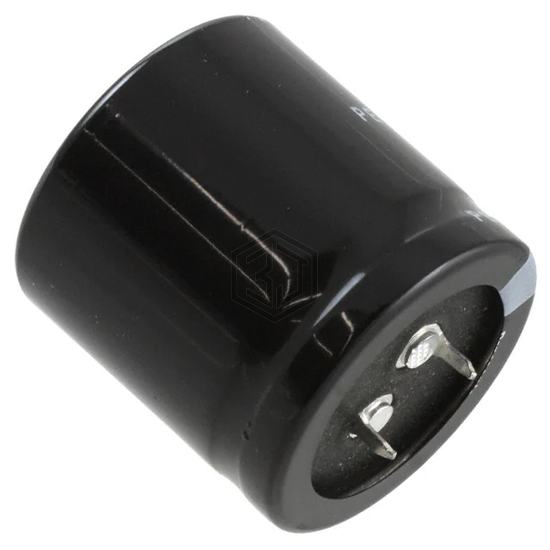

EET-HD2S271LJ is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 270UF 20% 420V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 420 V, package / case Radial, Can - Snap-In.
In Stock: 6,759
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.68 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-HD2S271LJ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 450HXG270MEFCSN30X40 | Rubycon | CAP ALUM 270UF 20% 450V SNAP | 96% | View |
| EKVB451VSN271MA25S | Chemi-Con | CAP ALUM 450V POLAR | 96% | View |
| 420VXH270MEFC22X50 | Rubycon | CAP ALUM 270UF 20% 420V SNAP | 86% | View |
| 100ZL270MEFC12.5X35 | Rubycon | CAP ALUM 270UF 20% 100V RADIAL | 67% | View |
| EKXJ201ELL271MLN3S | United Chemi-Con | CAP ALUM 270UF 20% 200V RADIAL | 67% | View |
| LP271M200C3P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 270UF 20% 200V SNAP | 59% | View |
Submit your RFQ for EET-HD2S271LJ and get a quote within 24 hours.
