Panasonic Electronic Components

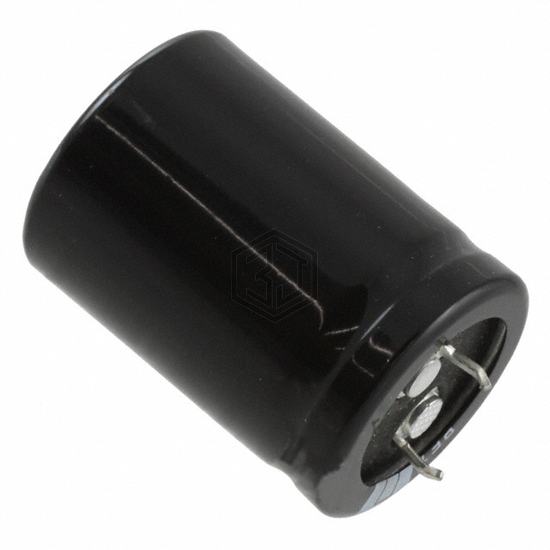

CAP ALUM 270UF 20% 420V SNAP
EET-HD2S271JJ is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 270UF 20% 420V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 420 V, package / case Radial, Can - Snap-In.
In Stock: 7,304
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.68 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-HD2S271JJ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43508A9277M62 | EPCOS - TDK Electronics | CAP ALUM 270UF 20% 400V SNAP | 97% | View |
| LQS2W271MELA50 | Nichicon | CAP ALUM 270UF 20% 450V SNAP | 96% | View |
| 861141486021 | Würth Elektronik | CAP ALUM 270UF 20% 450V SNAP | 95% | View |
| LGG2W271MELA40 | Nichicon | CAP ALUM 270UF 20% 450V SNAP | 93% | View |
| 450MXG270MEFCSN22X55 | Rubycon | CAP ALUM 270UF 20% 450V SNAP | 82% | View |
| B43544A7277M000 | EPCOS - TDK Electronics | CAP ALUM 270UF 20% 550V SNAP | 76% | View |
Submit your RFQ for EET-HD2S271JJ and get a quote within 24 hours.
