Panasonic Electronic Components
CAP ALUM 180UF 20% 420V SNAP

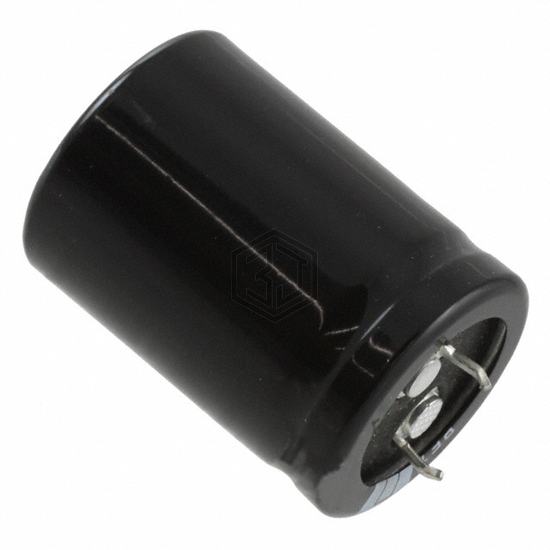

EET-HD2S181JJ is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 180UF 20% 420V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 420 V, package / case Radial, Can - Snap-In.
In Stock: 4,704
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 910 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.274 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-HD2S181JJ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 400CXW180MEFR18X35 | Rubycon | CAP ALUM 180UF 20% 400V RADIAL | 97% | View |
| LGN2V181MELA25 | Nichicon | CAP ALUM 180UF 20% 350V SNAP | 94% | View |
| B43544B9187M000 | EPCOS - TDK Electronics | CAP ALUM 180UF 20% 400V SNAP | 90% | View |
| ELXM3B1VSN181MQ30S | United Chemi-Con | CAP ALUM 180UF 20% 315V SNAP | 88% | View |
| 420MXG180MEFCSN25X30 | Rubycon | CAP ALUM 180UF 20% 420V SNAP | 87% | View |
| MAL225957181E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 180UF 20% 450V SNAP | 79% | View |
Submit your RFQ for EET-HD2S181JJ and get a quote within 24 hours.
