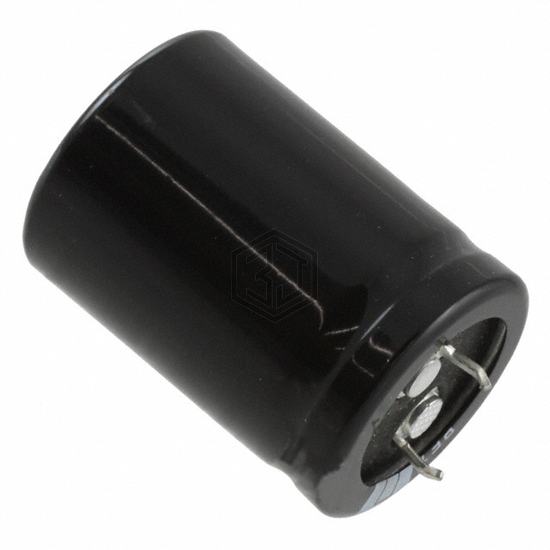

Panasonic Electronic Components
CAP ALUM 330UF 20% 400V SNAP
EET-HD2G331JJ is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 330UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 1,985
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.44 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.016 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-HD2G331JJ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH401VNN331MA30W | United Chemi-Con | CAP ALUM 330UF 20% 400V SNAP | 100% | View |
| EKMH401VNN331MR45S | United Chemi-Con | CAP ALUM 330UF 20% 400V SNAP | 99% | View |
| EKMW401VSN331MP45S | United Chemi-Con | CAP ALUM 330UF 20% 400V SNAP | 98% | View |
| B43252A9337M000 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 400V SNAP | 98% | View |
| EKMZ451VSN331MP50S | United Chemi-Con | CAP ALUM 330UF 20% 450V SNAP | 95% | View |
| B43508C9337M82 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 400V SNAP | 94% | View |
Submit your RFQ for EET-HD2G331JJ and get a quote within 24 hours.
