Panasonic Electronic Components
CAP ALUM 270UF 20% 400V SNAP

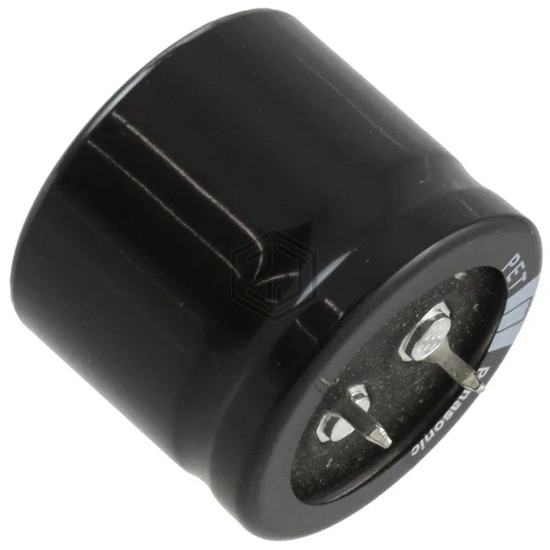

EET-HD2G271KJ is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 270UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 7,565
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.22 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.708 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-HD2G271KJ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMM401VSN271MQ45S | United Chemi-Con | CAP ALUM 270UF 20% 400V SNAP | 99% | View |
| EKMR451VSN271MA25S | United Chemi-Con | CAP ALUM 270UF 20% 450V SNAP | 94% | View |
| PG2S271MND2545Y | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 94% | View |
| 861141485018 | Würth Elektronik | CAP ALUM 270UF 20% 450V SNAP | 94% | View |
| B43504A5277M80 | EPCOS - TDK Electronics | CAP ALUM 270UF 20% 450V SNAP | 91% | View |
| LGJ2E271MELB15 | Nichicon | CAP ALUM 270UF 20% 250V SNAP | 78% | View |
Submit your RFQ for EET-HD2G271KJ and get a quote within 24 hours.
