Panasonic Electronic Components

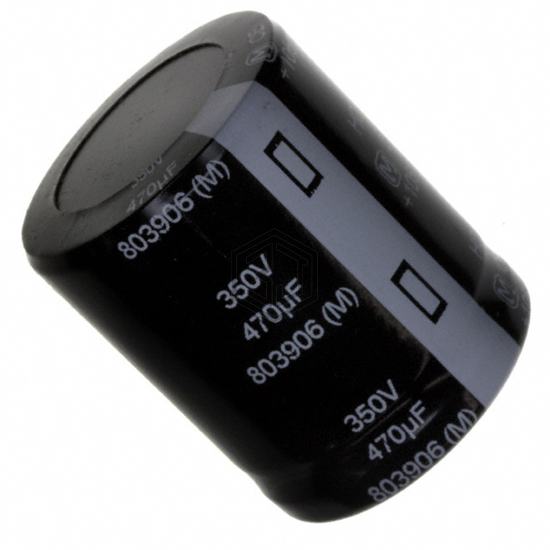

CAP ALUM 470UF 20% 350V SNAP
EET-HC2V471KF is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 470UF 20% 350V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 350 V, package / case Radial, Can - Snap-In.
In Stock: 4,064
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | 353mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.96 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-HC2V471KF is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 381LX471M315A042 | Cornell Dubilier Electronics (CDE) | CAP ALUM 470UF 20% 315V SNAP | 96% | View |
| LGJ2E471MELC20 | Nichicon | CAP ALUM 470UF 20% 250V SNAP | 86% | View |
| MAL209436471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 400V SNAP | 86% | View |
| SLP471M385H4P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 470UF 20% 385V SNAP | 85% | View |
| B43641B0477M050 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 420V SNAP | 85% | View |
| B43252C1477M | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 160V SNAP | 75% | View |
Submit your RFQ for EET-HC2V471KF and get a quote within 24 hours.
