Panasonic Electronic Components

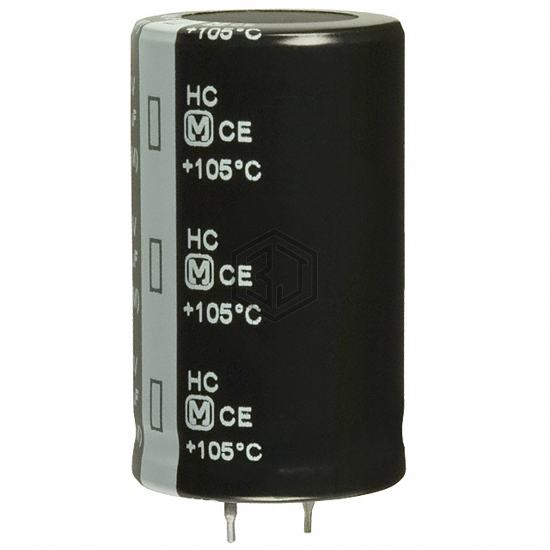

CAP ALUM 560UF 20% 420V SNAP
EET-HC2S561DA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 560UF 20% 420V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 420 V, package / case Radial, Can - Snap-In.
In Stock: 4,960
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | 326mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.9 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-HC2S561DA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215956561E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 560UF 20% 400V SNAP | 97% | View |
| B43545A5567M062 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 450V SNAP | 81% | View |
| B43547A5567M002 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 450V SNAP | 81% | View |
| E91F501VNT561MU65U | United Chemi-Con | CAP ALUM 560UF 20% 500V SNAP | 75% | View |
| B43642F2567M000 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 75% | View |
| LGN2E561MELZ45 | Nichicon | CAP ALUM 560UF 20% 250V SNAP | 71% | View |
Submit your RFQ for EET-HC2S561DA and get a quote within 24 hours.
