Panasonic Electronic Components
CAP ALUM 270UF 20% 420V SNAP

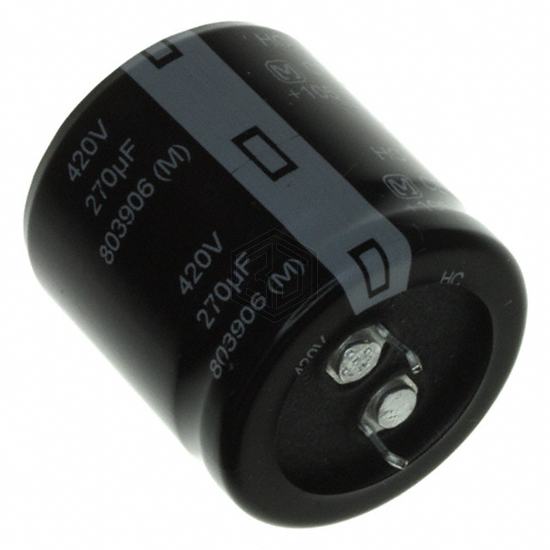

EET-HC2S271KA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 270UF 20% 420V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 420 V, package / case Radial, Can - Snap-In.
In Stock: 9,454
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | 675mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.68 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-HC2S271KA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 381LQ271M450A022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 270UF 20% 450V SNAP | 98% | View |
| 381LR271M400K022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 270UF 20% 400V SNAP | 97% | View |
| ELXS451VSN271MQ45S | United Chemi-Con | CAP ALUM 270UF 20% 450V SNAP | 91% | View |
| 381LQ271M350J032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 270UF 20% 350V SNAP | 90% | View |
| LGG2G271MELB25 | Nichicon | CAP ALUM 270UF 20% 400V SNAP | 90% | View |
| 400VXG270MEFC25X45 | Rubycon | CAP ALUM 270UF 20% 400V SNAP | 84% | View |
Submit your RFQ for EET-HC2S271KA and get a quote within 24 hours.
