Panasonic Electronic Components
CAP ALUM 270UF 20% 400V SNAP

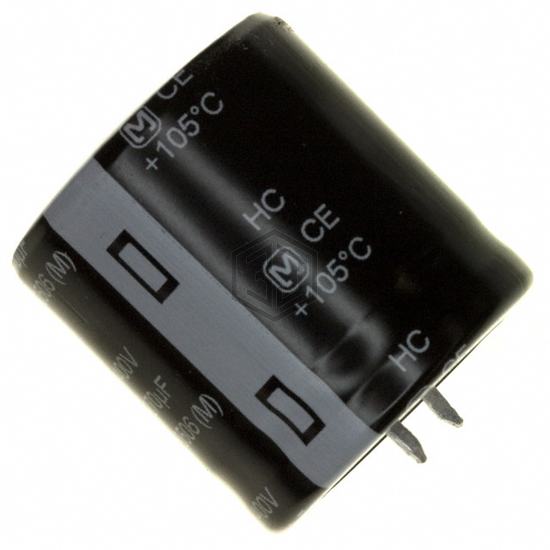

EET-HC2G271KA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 270UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 4,242
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 675mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.22 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.708 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-HC2G271KA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMW451VSN271MR30S | United Chemi-Con | CAP ALUM 270UF 20% 450V SNAP | 93% | View |
| 420MXG270MEFCSN25X40 | Rubycon | CAP ALUM 270UF 20% 420V SNAP | 87% | View |
| 220MXC270MEFCSN20X30 | Rubycon | CAP ALUM 270UF 20% 220V SNAP | 78% | View |
| LGU2D271MELY | Nichicon | CAP ALUM 270UF 20% 200V SNAP | 76% | View |
| UPT2P271MHD6 | Nichicon | CAP ALUM 270UF 20% 220V RADIAL | 69% | View |
| EKZE500ETD271MJ20S | United Chemi-Con | CAP ALUM 270UF 20% 50V RADIAL | 67% | View |
Submit your RFQ for EET-HC2G271KA and get a quote within 24 hours.
