Panasonic Electronic Components
CAP ALUM 680UF 20% 250V SNAP

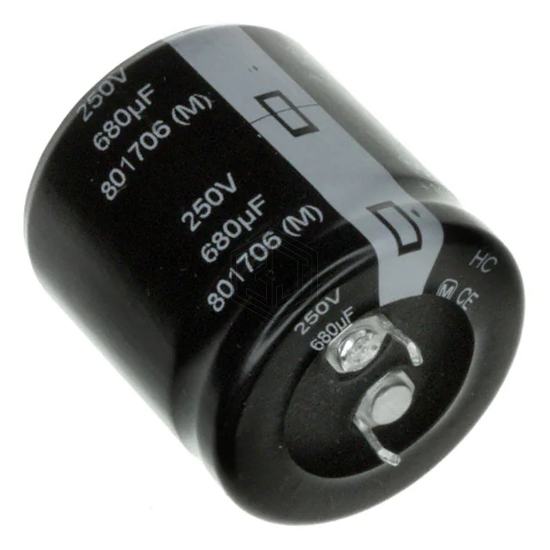

EET-HC2E681KA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 680UF 20% 250V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can - Snap-In.
In Stock: 9,816
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | 244mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.7 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.38 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-HC2E681KA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43504C2687M67 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 250V SNAP | 95% | View |
| EGPA800ELL681ML35S | United Chemi-Con | CAP ALUM 680UF 20% 80V RADIAL | 75% | View |
| ELXZ500ELL681MK30S | United Chemi-Con | CAP ALUM 680UF 20% 50V RADIAL | 71% | View |
| 757D687M035DK3D | Vishay Sprague | CAP ALUM 680UF 20% 35V RADIAL | 71% | View |
| MAL214658681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 63V RADIAL | 67% | View |
| 80ZLH680MEFCGC16X31.5 | Rubycon | CAP ALUM 680UF 20% 80V RADIAL | 63% | View |
Submit your RFQ for EET-HC2E681KA and get a quote within 24 hours.
