Panasonic Electronic Components
CAP ALUM 1000UF 20% 250V SNAP

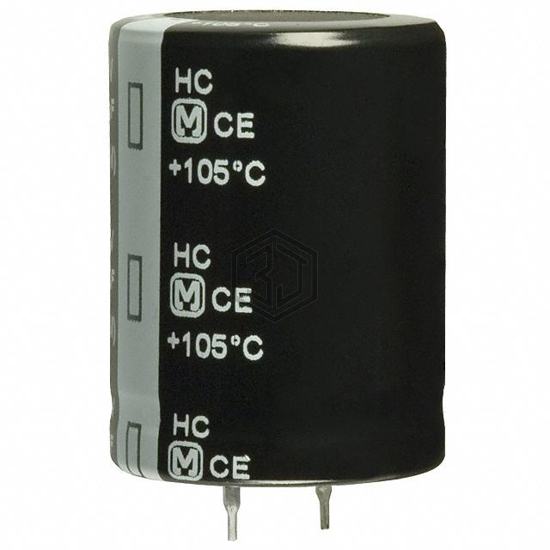

EET-HC2E102DA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 1000UF 20% 250V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can - Snap-In.
In Stock: 3,651
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | 166mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.08 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-HC2E102DA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43504B2108M80 | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 250V SNAP | 94% | View |
| LGG2D102MELA40 | Nichicon | CAP ALUM 1000UF 20% 200V SNAP | 91% | View |
| B43504J2108M7 | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 200V SNAP | 87% | View |
| 381LX102M160H052 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1000UF 20% 160V SNAP | 86% | View |
| UBW1V102MHD | Nichicon | CAP ALUM 1000UF 20% 35V RADIAL | 57% | View |
| RZW102M1EBK-1320S | SURGE | CAP ALUM 1000UF 20% 25V RADIAL | 56% | View |
Submit your RFQ for EET-HC2E102DA and get a quote within 24 hours.
