Panasonic Electronic Components

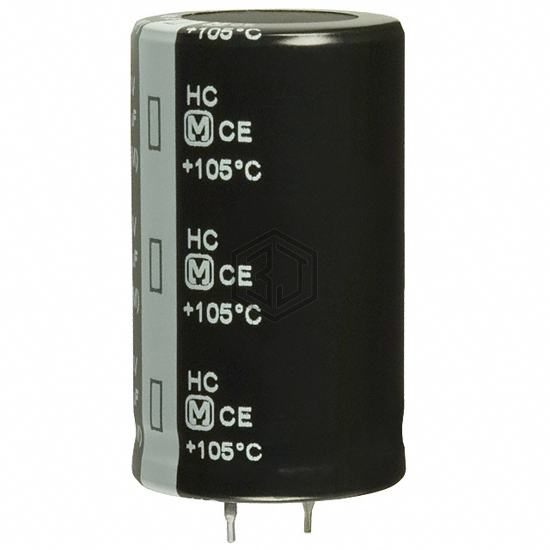

CAP ALUM 2700UF 20% 160V SNAP
EET-HC2C272DA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 2700UF 20% 160V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can - Snap-In.
In Stock: 5,125
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | 80mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.34 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-HC2C272DA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41252B9278M | EPCOS - TDK Electronics | CAP ALUM 2700UF 20% 100V SNAP | 79% | View |
| EKMH101VSN272MR45U | United Chemi-Con | CAP ALUM 2700UF 20% 100V SNAP | 79% | View |
| EEU-FM1C272S | Panasonic Electronic Components | CAP ALUM 2700UF 20% 16V RADIAL | 69% | View |
| KY25VB272M12X40LL | United Chemi-Con | CAP ALUM 2700UF 20% 25V RADIAL | 68% | View |
| EKY-250ELL272ML25S | United Chemi-Con | CAP ALUM 2700UF 20% 25V RADIAL | 61% | View |
| EKZH160ELL272MK25S | United Chemi-Con | CAP ALUM 2700UF 20% 16V RADIAL | 61% | View |
Submit your RFQ for EET-HC2C272DA and get a quote within 24 hours.
