Panasonic Electronic Components
CAP ALUM 56UF 20% 450V SNAP

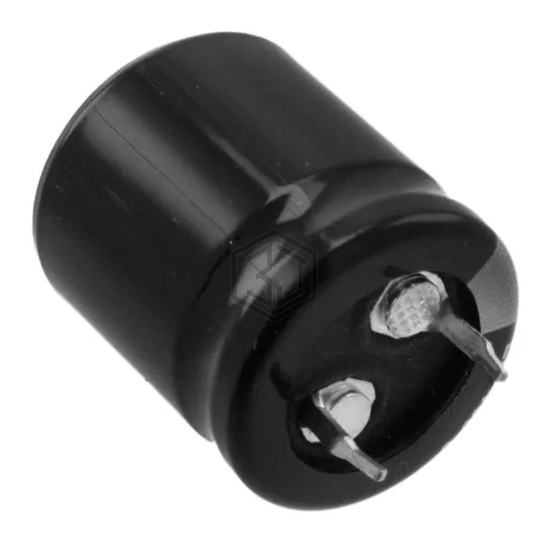

EET-ED2W560BA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 56UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 7,016
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 2.368Ohm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 670 mA @ 120 Hz |
| Ripple Current @ High Frequency | 950 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-ED2W560BA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 400HXW56MEFR10X40 | Rubycon | CAP ALUM 56UF 20% 400V RADIAL | 90% | View |
| 500LXW56MEFR18X30 | Rubycon | CAP ALUM 56UF 20% 500V RADIAL | 86% | View |
| EKHE401ELL560MK30S | United Chemi-Con | RADIAL ALUMINUM ELECTROLYTIC CAP | 86% | View |
| 400KXW56MEFC12.5X35 | Rubycon | CAP ALUM 56UF 20% 400V RADIAL | 80% | View |
| EKXJ351ELL560MJ45S | United Chemi-Con | CAP ALUM 56UF 20% 350V RADIAL | 79% | View |
| LAS2G560MELZ20 | Nichicon | CAP ALUM 56UF 20% 400V SNAP | 72% | View |
Submit your RFQ for EET-ED2W560BA and get a quote within 24 hours.
