Panasonic Electronic Components

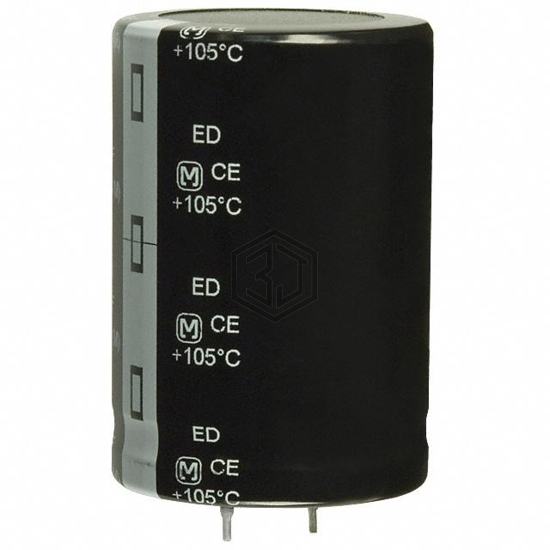

CAP ALUM 470UF 20% 450V SNAP
EET-ED2W471EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 470UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 6,398
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 282mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.47 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.53 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-ED2W471EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 450MXK470MEFCSN25X55 | Rubycon | CAP ALUM 470UF 20% 450V SNAP | 94% | View |
| 400HXC470MEFCSN35X45 | Rubycon | CAP ALUM 470UF 20% 400V SNAP | 90% | View |
| 381LX471M450A052 | Cornell Dubilier Electronics (CDE) | CAP ALUM 470UF 20% 450V SNAP | 82% | View |
| EKMH401VSN471MA45S | United Chemi-Con | CAP ALUM 470UF 20% 400V SNAP | 80% | View |
| LGL2W471MELB45 | Nichicon | CAP ALUM 470UF 20% 450V SNAP | 75% | View |
| 50YXF470MEFC10X20 | Rubycon | CAP ALUM 470UF 20% 50V RADIAL | 56% | View |
Submit your RFQ for EET-ED2W471EA and get a quote within 24 hours.
