Panasonic Electronic Components
CAP ALUM 270UF 20% 450V SNAP

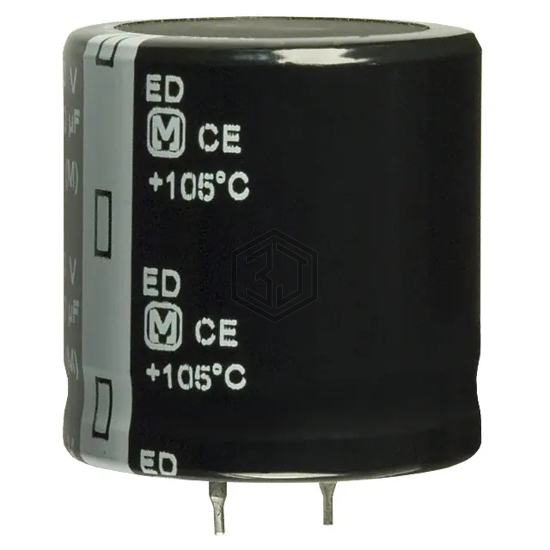

EET-ED2W271DA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 270UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 7,822
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 491mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.72 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.45 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-ED2W271DA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 450HXG270MEFCSN30X40 | Rubycon | CAP ALUM 270UF 20% 450V SNAP | 100% | View |
| 420VXH270MEFC22X50 | Rubycon | CAP ALUM 270UF 20% 420V SNAP | 94% | View |
| EKMH451VSN271MR45S | United Chemi-Con | CAP ALUM 270UF 20% 450V SNAP | 81% | View |
| 381LR271M250H022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 270UF 20% 250V SNAP | 73% | View |
| UCY2C271MHD6 | Nichicon | CAP ALUM 270UF 20% 160V RADIAL | 71% | View |
| EEU-FR1H271 | Panasonic Electronic Components | CAP ALUM 270UF 20% 50V RADIAL | 66% | View |
Submit your RFQ for EET-ED2W271DA and get a quote within 24 hours.
