Panasonic Electronic Components

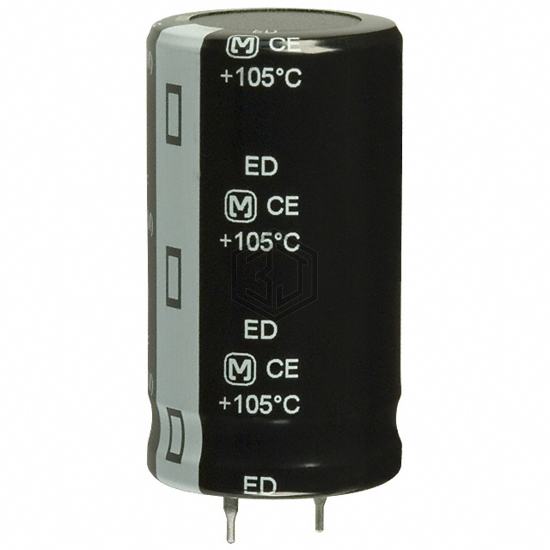

CAP ALUM 220UF 20% 450V SNAP
EET-ED2W221CA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 220UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 7,732
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 603mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.42 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.03 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-ED2W221CA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 381LR221M400A012 | Cornell Dubilier Electronics (CDE) | CAP ALUM 220UF 20% 400V SNAP | 96% | View |
| ETXH451VSN221MR40S | United Chemi-Con | CAP ALUM 220UF 20% 450V SNAP | 85% | View |
| 381LX221M315H452 | Cornell Dubilier Electronics (CDE) | CAP ALUM 220UF 20% 315V SNAP | 72% | View |
| UCS2E221MHD | Nichicon | CAP ALUM 220UF 20% 250V RADIAL | 69% | View |
| 160BXC220MEFCGC18X25 | Rubycon | CAP ALUM 220UF 20% 160V RADIAL | 62% | View |
| B43508E2227M2 | EPCOS - TDK Electronics | CAP ALUM 220UF 20% 250V SNAP | 61% | View |
Submit your RFQ for EET-ED2W221CA and get a quote within 24 hours.
