Panasonic Electronic Components
CAP ALUM 82UF 20% 400V SNAP

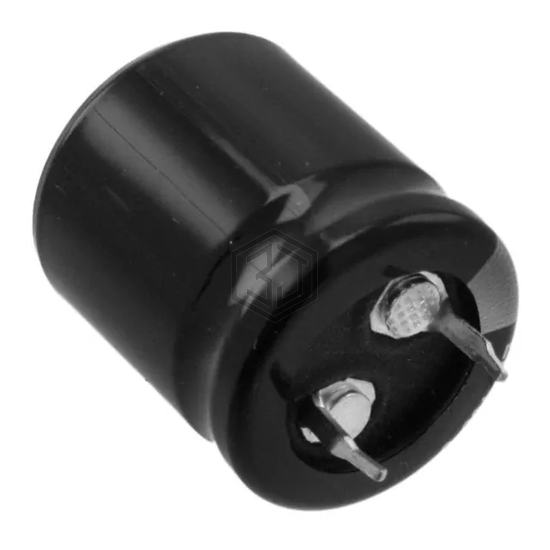

EET-ED2G820BA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 82UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 2,499
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 1.617Ohm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 800 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.14 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-ED2G820BA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 450TXW82MEFC16X40 | Rubycon | CAP ALUM 82UF 20% 450V RADIAL | 90% | View |
| 400CXW82MEFR12.5X45 | Rubycon | CAP ALUM 82UF 20% 400V RADIAL | 88% | View |
| EKXJ401ELL820MLN3S | United Chemi-Con | CAP ALUM 82UF 20% 400V RADIAL | 87% | View |
| UPTW6820MHD | Nichicon | CAP ALUM 82UF 20% 420V RADIAL | 85% | View |
| 450BXW82MEFR14.5X45 | Rubycon | CAP ALUM 82UF 20% 450V RADIAL | 83% | View |
| UCY2E820MHD | Nichicon | CAP ALUM 82UF 20% 250V RADIAL | 78% | View |
Submit your RFQ for EET-ED2G820BA and get a quote within 24 hours.
