Panasonic Electronic Components

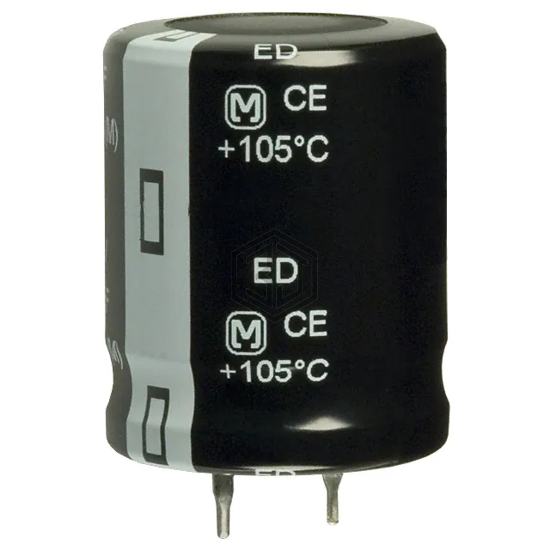

CAP ALUM 150UF 20% 400V SNAP
EET-ED2G151CA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 150UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 9,009
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 884mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.07 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.53 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-ED2G151CA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 420BXW150MEFR16X50 | Rubycon | CAP ALUM 150UF 20% 420V RADIAL | 88% | View |
| LGW2W151MELB25 | Nichicon | CAP ALUM 150UF 20% 450V SNAP | 87% | View |
| EKMM401VSN151MA20U | United Chemi-Con | CAP ALUM 150UF 20% 400V SNAP | 86% | View |
| 220TXW150MEFR12.5X35 | Rubycon | CAP ALUM 150UF 20% 220V RAD TH | 71% | View |
| EEU-FS1H151LB | Panasonic Electronic Components | CAP ALUM 150UF 20% 50V RADIAL | 65% | View |
| 672D157F015CG4I | Vishay Sprague | CAP ALUM 150UF 15V RADIAL | 56% | View |
Submit your RFQ for EET-ED2G151CA and get a quote within 24 hours.
