Panasonic Electronic Components

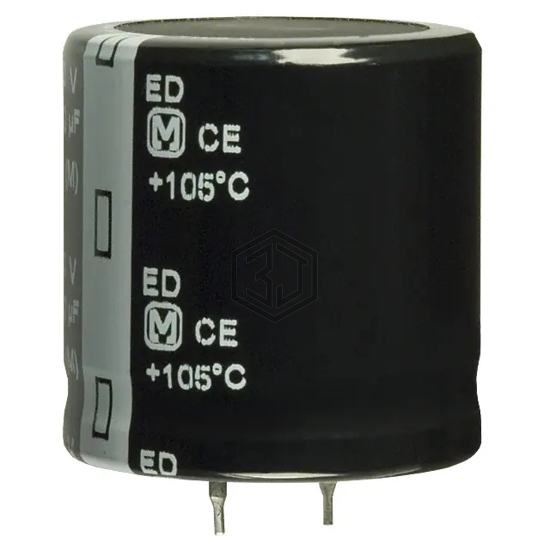

CAP ALUM 820UF 20% 250V SNAP
EET-ED2E821DA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 820UF 20% 250V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can - Snap-In.
In Stock: 6,500
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | 182mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.63 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.76 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-ED2E821DA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 381LR821M250A032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 820UF 20% 250V SNAP | 100% | View |
| LAR2E821MELC30 | Nichicon | CAP ALUM 820UF 20% 250V SNAP | 88% | View |
| LGU2P821MELA | Nichicon | CAP ALUM 820UF 20% 220V SNAP | 86% | View |
| B43504A2827M87 | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 200V SNAP | 86% | View |
| 160MXG820MEFCSN20X50 | Rubycon | CAP ALUM 820UF 20% 160V SNAP | 85% | View |
| 180MXC820MEFC30X30 | Rubycon | CAP ALUM 820UF 20% 180V SNAP | 78% | View |
Submit your RFQ for EET-ED2E821DA and get a quote within 24 hours.
