Panasonic Electronic Components
CAP ALUM 560UF 20% 250V SNAP

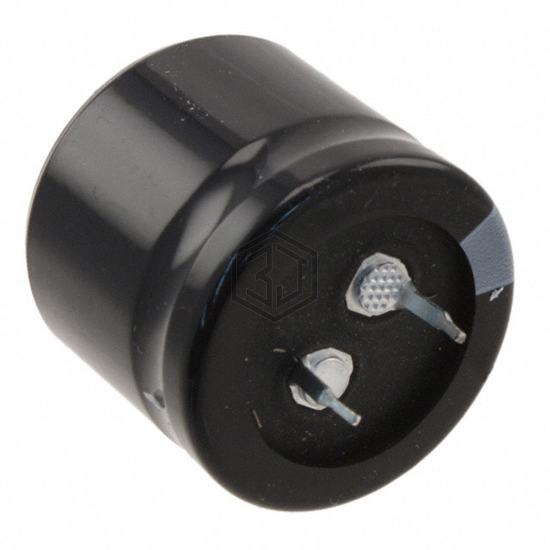

EET-ED2E561DA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 560UF 20% 250V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can - Snap-In.
In Stock: 9,992
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | 266mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.14 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.05 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-ED2E561DA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 601D567F200JT1 | Vishay Sprague | CAP ALUM 560UF 200V AXIAL | 83% | View |
| B43504E2567M67 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 200V SNAP | 82% | View |
| B43644B9567M000 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 400V SNAP | 80% | View |
| B43640E9567M000 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 400V SNAP | 78% | View |
| MAL225926561E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 560UF 20% 400V SNAP | 77% | View |
| 381LX561M200K012 | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 200V SNAP | 76% | View |
Submit your RFQ for EET-ED2E561DA and get a quote within 24 hours.
