Panasonic Electronic Components
CAP ALUM 390UF 20% 250V SNAP

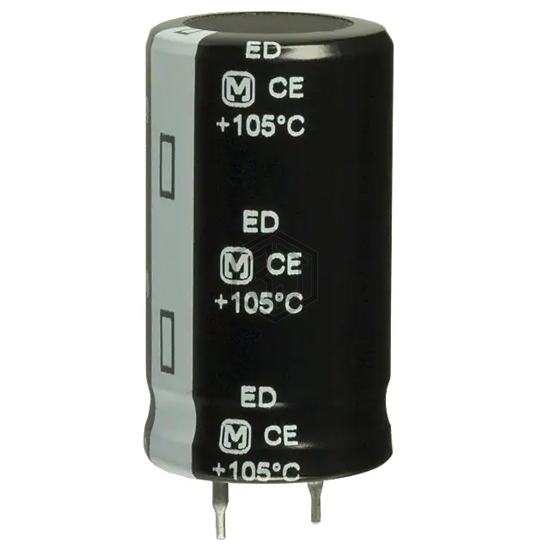

EET-ED2E391BA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 390UF 20% 250V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can - Snap-In.
In Stock: 9,332
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | 383mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.72 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.45 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-ED2E391BA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43252F2397M | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 250V SNAP | 93% | View |
| LGR2E391MELZ45 | Nichicon | CAP ALUM 390UF 20% 250V SNAP | 88% | View |
| LAR2E391MELA30 | Nichicon | CAP ALUM 390UF 20% 250V SNAP | 88% | View |
| B43254A2397M | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 200V SNAP | 77% | View |
| B43254B1397M | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 160V SNAP | 71% | View |
| B41890A6397M | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 50V RADIAL | 69% | View |
Submit your RFQ for EET-ED2E391BA and get a quote within 24 hours.
