Panasonic Electronic Components
CAP ALUM 270UF 20% 250V SNAP

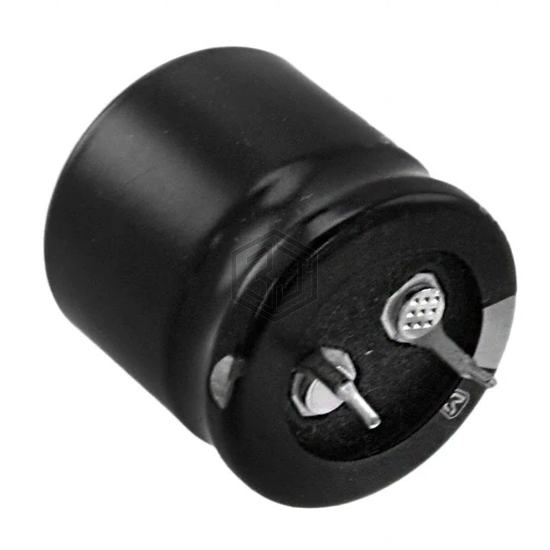

EET-ED2E271CA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 270UF 20% 250V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can - Snap-In.
In Stock: 8,236
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | 553mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.42 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.03 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-ED2E271CA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGU2E271MELZ | Nichicon | CAP ALUM 270UF 20% 250V SNAP | 92% | View |
| EKMZ451VSN271MP45S | United Chemi-Con | CAP ALUM 270UF 20% 450V SNAP | 78% | View |
| EEU-FR1J271LB | Panasonic Electronic Components | CAP ALUM 270UF 20% 63V RADIAL | 64% | View |
| MAL225919271E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 270UF 20% 500V SNAP | 64% | View |
| B41789A8277Q001 | EPCOS - TDK Electronics | CAP ALUM 270UF 63V RADIAL | 57% | View |
| EEU-FR1V271LB | Panasonic Electronic Components | CAP ALUM 270UF 20% 35V RADIAL | 55% | View |
Submit your RFQ for EET-ED2E271CA and get a quote within 24 hours.
