Panasonic Electronic Components

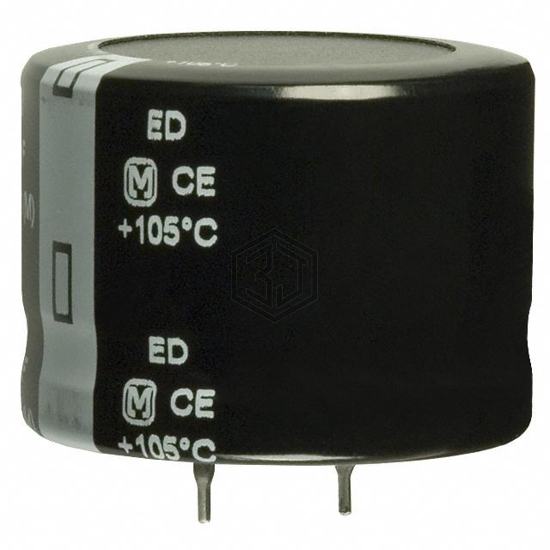

CAP ALUM 820UF 20% 200V SNAP
EET-ED2D821EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 820UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 3,246
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 182mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.63 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.76 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-ED2D821EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGU2D821MELA | Nichicon | CAP ALUM 820UF 20% 200V SNAP | 89% | View |
| LGW2E821MELC30 | Nichicon | CAP ALUM 820UF 20% 250V SNAP | 86% | View |
| B43508E2827M67 | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 250V SNAP | 83% | View |
| B43640G2827M000 | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 250V SNAP | 74% | View |
| 827LMH400M2EH | Cornell Dubilier / Illinois Capacitor | CAP ALUM 820UF 20% 400V SNAP | 73% | View |
| EEU-FC1J821SB | Panasonic Electronic Components | CAP ALUM 820UF 20% 63V RADIAL | 63% | View |
