Panasonic Electronic Components

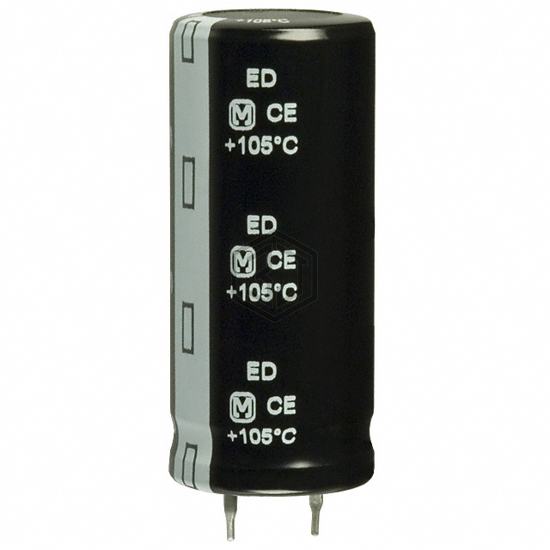

CAP ALUM 820UF 20% 200V SNAP
EET-ED2D821BA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 820UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 4,763
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 182mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.63 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.76 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-ED2D821BA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL225962821E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 820UF 20% 200V SNAP | 93% | View |
| B43508A2827M62 | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 200V SNAP | 90% | View |
| LGG2P821MELA40 | Nichicon | CAP ALUM 820UF 20% 220V SNAP | 83% | View |
| B43508D2827M82 | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 200V SNAP | 80% | View |
| EEU-FR1J821B | Panasonic Electronic Components | CAP ALUM 820UF 20% 63V RADIAL | 70% | View |
| 80ZLH820MEFC16X35.5 | Rubycon | CAP ALUM 820UF 20% 80V RADIAL | 58% | View |
Submit your RFQ for EET-ED2D821BA and get a quote within 24 hours.
