Panasonic Electronic Components
CAP ALUM 560UF 20% 200V SNAP

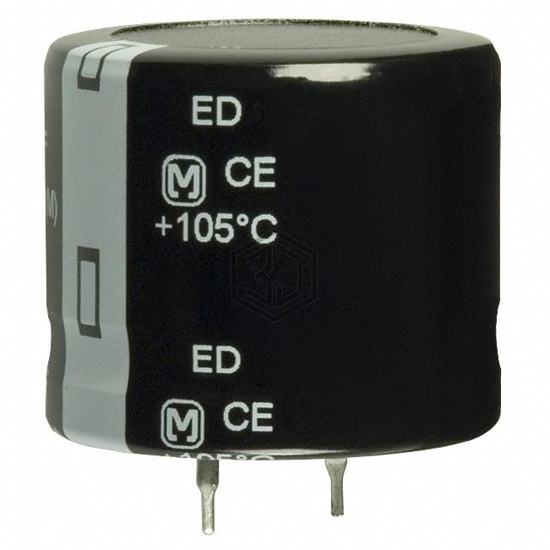

EET-ED2D561DA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 560UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 6,464
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 266mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.14 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.05 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-ED2D561DA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43508B2567M87 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 200V SNAP | 88% | View |
| 250MXC560MEFCSN30X30 | Rubycon | CAP ALUM 560UF 20% 250V SNAP | 86% | View |
| LGR2D561MELB30 | Nichicon | CAP ALUM 560UF 20% 200V SNAP | 84% | View |
| 381LX561M250J452 | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 250V SNAP | 76% | View |
| 381LQ561M315K042 | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 315V SNAP | 69% | View |
| B43545B9567M000 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 400V SNAP | 62% | View |
