Panasonic Electronic Components
CAP ALUM 390UF 20% 200V SNAP

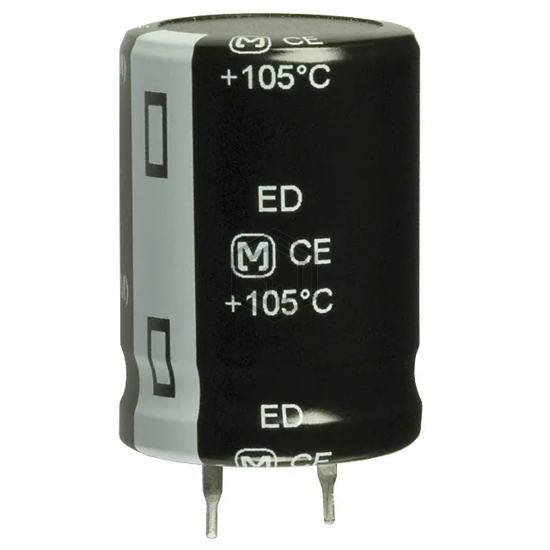

EET-ED2D391BA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 390UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 1,177
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 383mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.71 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.44 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-ED2D391BA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGN2P391MELA25 | Nichicon | CAP ALUM 390UF 20% 220V SNAP | 87% | View |
| LGW2E391MELA30 | Nichicon | CAP ALUM 390UF 20% 250V SNAP | 86% | View |
| LGJ2E391MELC20 | Nichicon | CAP ALUM 390UF 20% 250V SNAP | 85% | View |
| B43504A2397M62 | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 250V SNAP | 84% | View |
| 250MXC390MEFC25X30 | Rubycon | CAP ALUM 390UF 20% 250V SNAP | 83% | View |
| LP391M200C5P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 390UF 20% 200V SNAP | 73% | View |
Submit your RFQ for EET-ED2D391BA and get a quote within 24 hours.
