Panasonic Electronic Components
CAP ALUM 2200UF 20% 200V SNAP

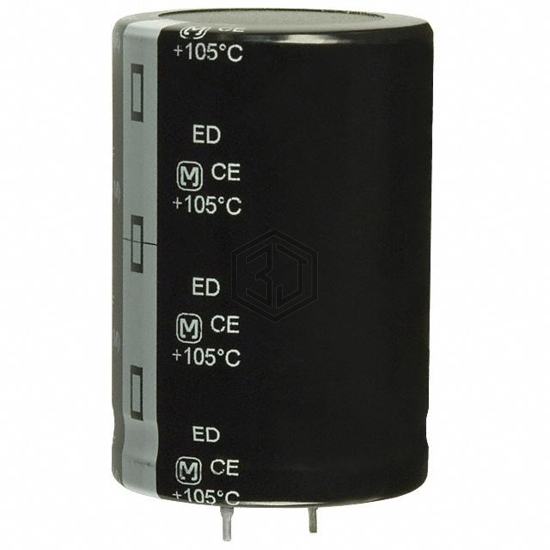

EET-ED2D222EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 2200UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 9,445
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 68mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.12 A @ 120 Hz |
| Ripple Current @ High Frequency | 5.89 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-ED2D222EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL225962222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 200V SNAP | 98% | View |
| B43504F2228M67 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 200V SNAP | 98% | View |
| B43508A2228M2 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 200V SNAP | 88% | View |
| 250MXG2200MEFCSN35X60 | Rubycon | CAP ALUM 2200UF 20% 250V SNAP | 84% | View |
| MAL212047222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 40V T/H | 60% | View |
| 25YXG2200MEFC12.5X25 | Rubycon | CAP ALUM 2200UF 20% 25V RAD TH | 56% | View |
