Panasonic Electronic Components

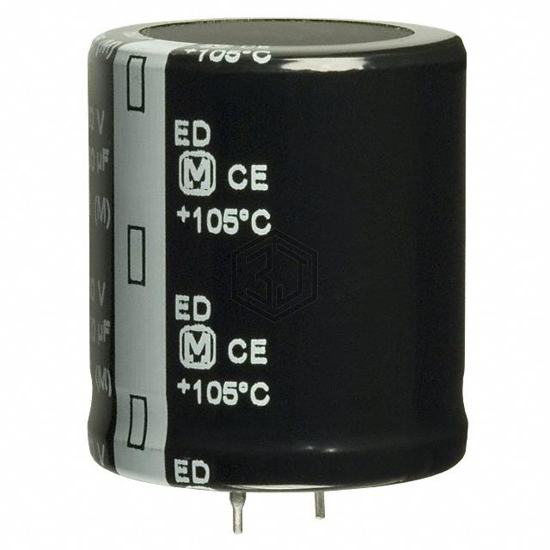

CAP ALUM 1500UF 20% 200V SNAP
EET-ED2D152EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 1500UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 6,421
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 99mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.56 A @ 120 Hz |
| Ripple Current @ High Frequency | 5.08 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-ED2D152EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43504G2158M62 | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 200V SNAP | 99% | View |
| EKHU451VSN1E2MR95S | Chemi-Con | CAP ALUM 1.45 MF 20% 450V TH | 76% | View |
| ELHU451VSN1E2MR95S | Chemi-Con | CAP ALUM 1.45 MF 20% 450V TH | 76% | View |
| EKHV351VSN1E2MA55S | Chemi-Con | CAP ALUM 1.45MF 20% 350V TH | 74% | View |
| EKHX351VSN142MA55S | Chemi-Con | CAP ALUM 1.42MF 20% 350V TH | 74% | View |
| B41252B158M | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 80V SNAP | 56% | View |
Submit your RFQ for EET-ED2D152EA and get a quote within 24 hours.
