Panasonic Electronic Components
CAP ALUM POLY HYB 470UF 25V SMD

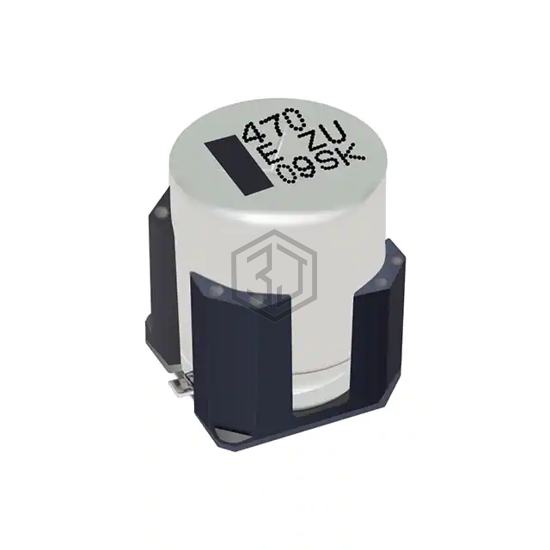

EEH-ZU1E471V is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY HYB 470UF 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 135°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 3,054
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 10mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 135°C |
| Operating Temperature | -55°C ~ 135°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 750 mA @ 100 Hz |
| Ripple Current @ High Frequency | 5 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.516" (13.10mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEH-ZU1V471UP | Panasonic Electronic Components | CAP ALUMHYB 470UF 20% 35V SMD | 90% | View |
| EEH-ZU1V471P | Panasonic Electronic Components | CAP ALUM POLY HYB 470UF 35V SMD | 85% | View |
| GWC1V471MNU1GS | Nichicon | 35V 470F HYBRID POLYMER CHIP CHI | 83% | View |
| HHXF350GRA471MJH0G | Chemi-Con | CAP ALUMHYB 470UF 20% 35V SMD | 80% | View |
| HHXF350ARA471MJH0G | Chemi-Con | CAP ALUMHYB 470UF 20% 35V SMD | 80% | View |
| 35PHV470M10X16.5 | Rubycon | CAP ALUM POLY HYB 470UF 35V SMD | 62% | View |
