Panasonic Electronic Components
CAP ALUM POLY 150UF 20% 63V SMD

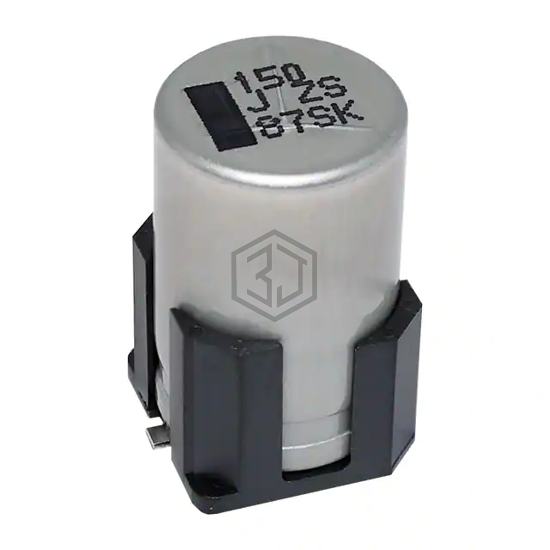

EEH-ZS1J151V is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 150UF 20% 63V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 63 V, package / case Radial, Can - SMD.
In Stock: 2,359
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 15mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 525 mA @ 100 Hz |
| Ripple Current @ High Frequency | 3.5 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.661" (16.80mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| GYF1J151MCQ1GS | Nichicon | 63V 150F HYBRID POLYMER CHIP CHI | 93% | View |
| HHXE630ARA151MJH0G | Chemi-Con | CAP ALUMHYB 150UF 20% 63V SMD | 90% | View |
| HHXF630ARA151MJH0G | Chemi-Con | CAP ALUMHYB 150UF 20% 63V SMD | 90% | View |
| A784MW157M1JLAV015 | KEMET | CAP ALUM HYB 150UF 20% 63V SMD | 89% | View |
| HHXC350ARA151MJA0G | United Chemi-Con | CAP ALUM POLY 150UF 20% 35V SMD | 58% | View |
| HHXC350ARA151MHA0G | United Chemi-Con | CAP ALUM POLY 150UF 20% 35V SMD | 50% | View |
Submit your RFQ for EEH-ZS1J151V and get a quote within 24 hours.
