Panasonic Electronic Components
CAP ALUM POLY HYB 1000UF 25V SMD

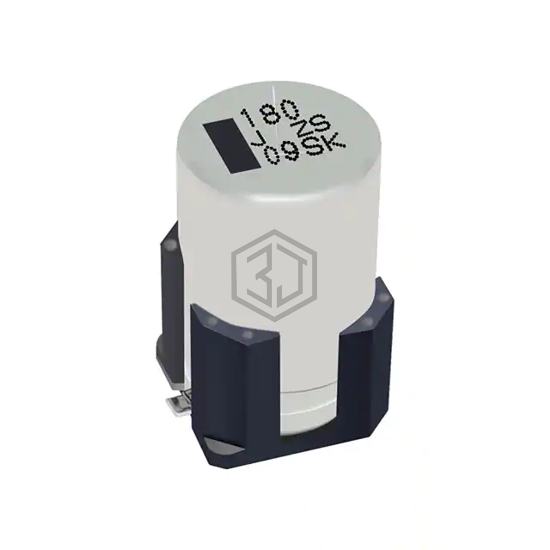

EEH-ZS1E102UV is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY HYB 1000UF 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 5,099
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 11mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 800 mA @ 120 Hz |
| Ripple Current @ High Frequency | 4 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.673" (17.10mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B40921A5108M000 | EPCOS - TDK Electronics | CAP ALUM POLY HYB 1000UF 25V SMD | 98% | View |
| B40921A5118M000 | EPCOS - TDK Electronics | CAP ALUM POLY HYB 1100UF 25V SMD | 94% | View |
| B40921A5118M100 | EPCOS - TDK Electronics | CAP ALUM POLY HYB 1100UF 25V SMD | 94% | View |
| EEH-ZU1E102UP | Panasonic Electronic Components | CAP ALUMHYB 1000UF 20% 25V SMD | 87% | View |
| EEH-ZU1E102UV | Panasonic Electronic Components | CAP ALUMHYB 1000UF 20% 25V SMD | 87% | View |
| A783MW108M1ELAS011 | KEMET | CAP ALU HYBRID 125C 25V 1,000UF | 83% | View |
Submit your RFQ for EEH-ZS1E102UV and get a quote within 24 hours.
