Panasonic Electronic Components

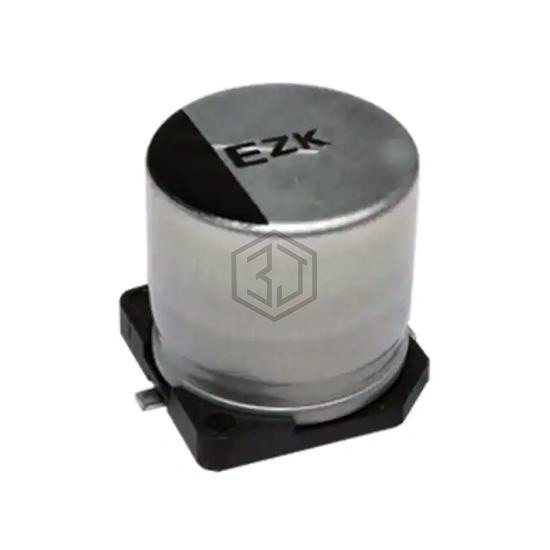

CAP ALUM POLY HYB 120UF 35V SMD
EEH-ZKV121XUP is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY HYB 120UF 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 2,661
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 35mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 255 mA @ 100 Hz |
| Ripple Current @ High Frequency | 1.7 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| GYF1V121MCQ1GS | Nichicon | CAP ALUMHYB 120UF 20% 35V SMD | 100% | View |
| EEH-ZC1H121V | Panasonic Electronic Components | CAP ALUM POLY 120UF 20% 50V SMD | 86% | View |
| GYF1J121MCQ1GS | Nichicon | CAP ALUMHYB 120UF 20% 63V SMD | 74% | View |
| HHXE500GRA121MJA0G | Chemi-Con | CAP ALUMHYB 120UF 20% 50V SMD | 73% | View |
| GYC1H121MCQ1GS | Nichicon | CAP ALUMHYB 120UF 20% 50V SMD | 69% | View |
| EEH-ZT1H121P | Panasonic Electronic Components | CAP ALUM POLY HYB 120UF 50V SMD | 64% | View |
Submit your RFQ for EEH-ZKV121XUP and get a quote within 24 hours.
