Panasonic Electronic Components

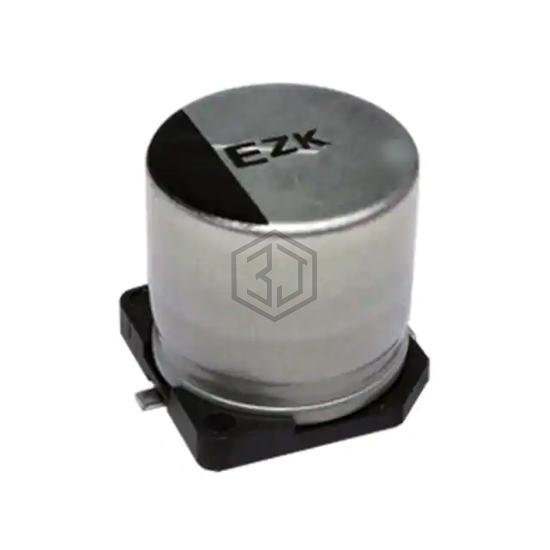

CAP ALUM POLY HYB 180UF 25V SMD
EEH-ZKE181XUP is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY HYB 180UF 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 9,234
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 30mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 270 mA @ 100 Hz |
| Ripple Current @ High Frequency | 1.8 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEH-ZKE181XUV | Panasonic Electronic Components | CAP ALUM POLY HYB 180UF 25V SMD | 100% | View |
| GYF1E181MCQ1GS | Nichicon | CAP ALUMHYB 180UF 20% 25V SMD | 100% | View |
| EEH-ZK1V181V | Panasonic Electronic Components | CAP ALUM POLY 180UF 20% 35V SMD | 85% | View |
| GYE1V181MCW1GS | Nichicon | CAP ALUMHYB 180UF 20% 35V SMD | 85% | View |
| 35PJV180M8X10.5 | Rubycon | CAP ALUM POLY HYB 180UF 35V SMD | 63% | View |
| 35PJV180MVB8X10.5 | Rubycon | CAP ALUM POLY HYB 180UF 35V SMD | 63% | View |
Submit your RFQ for EEH-ZKE181XUP and get a quote within 24 hours.
