Panasonic Electronic Components

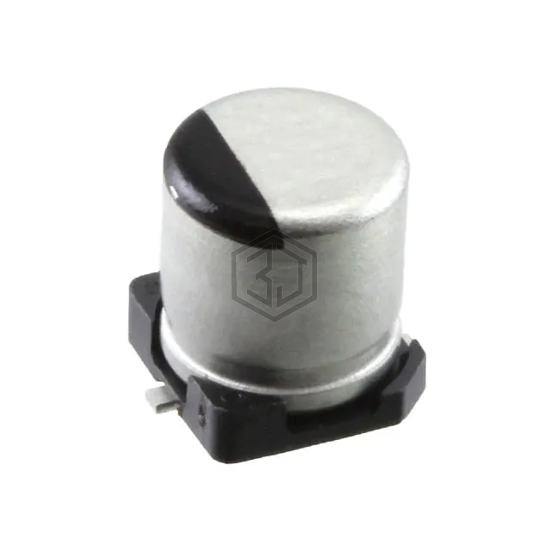

CAP ALUM POLY 47UF 20% 25V SMD
EEH-ZK1E470R is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 47UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 1,830
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 80mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 127.5 mA @ 100 Hz |
| Ripple Current @ High Frequency | 850 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEH-ZC1E470P | Panasonic Electronic Components | CAP ALUM HYBRID 47UF 20% 25V SMD | 97% | View |
| HBW470M1ETR-0606S | Surge | CAP ALUM HYBRID 47UF 20% 25V SMD | 90% | View |
| HZC476M035D16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM POLY 47UF 20% 35V SMD | 80% | View |
| EEH-ZC1J470V | Panasonic Electronic Components | CAP ALUM HYBRID 47UF 20% 63V SMD | 67% | View |
| 35PHV47M6.3X6.1 | Rubycon | CAP ALUM POLY HYB 47UF 35V SMD | 63% | View |
| EEH-ZC1K470V | Panasonic Electronic Components | CAP ALUM POLY 47UF 20% 80V SMD | 56% | View |
Submit your RFQ for EEH-ZK1E470R and get a quote within 24 hours.
