Panasonic Electronic Components

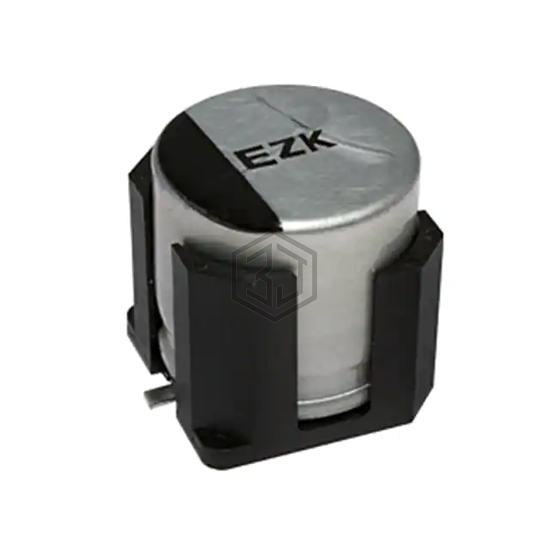

CAP ALUM POLY HYB 330UF 25V SMD
EEH-ZK1E331UV is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY HYB 330UF 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 4,578
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 27mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 300 mA @ 100 Hz |
| Ripple Current @ High Frequency | 2 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.425" (10.80mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| HHXJ250ARA331MHA0G | Chemi-Con | CAP ALUMHYB 330UF 20% 25V SMD | 100% | View |
| GYF1E331MCQ1GS | Nichicon | CAP ALUMHYB 330UF 20% 25V SMD | 100% | View |
| RAHTX331M1TFH0002ZT | Elna America | CAP ALUMHYB 330UF 20% 25V SMD | 90% | View |
| GYC1E331MCQ1GS | Nichicon | CAP ALUM HYBRD 330UF 20% 25V SMD | 76% | View |
| GYC1E331MCW1GS | Nichicon | CAP ALUM POLY HYB 330UF 25V SMD | 76% | View |
| 25PFV330M10X10.5 | Rubycon | CAP ALUM POLY HYB 330UF 25V SMD | 74% | View |
Submit your RFQ for EEH-ZK1E331UV and get a quote within 24 hours.
