Panasonic Electronic Components

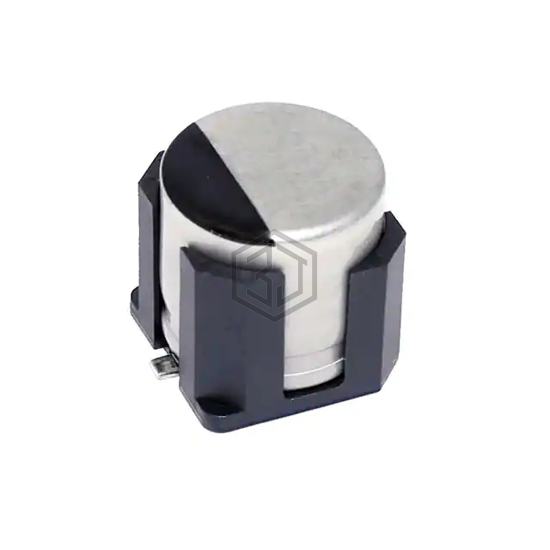

CAP ALUM HYB 220UF 20% 35V SMD
EEH-ZC1V221V is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM HYB 220UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 2,574
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 20mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 300 mA @ 100 Hz |
| Ripple Current @ High Frequency | 2 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.425" (10.80mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 35PKV220M8X10.5 | Rubycon | CAP ALUMHYB 220UF 20% 35V SMD | 100% | View |
| HHXC250ARA221MHA0G | United Chemi-Con | CAP ALUM POLY 220UF 20% 25V SMD | 79% | View |
| BW227M025HFKTA | Aillen | CAP ALUMHYB 220UF 20% 25V SMD | 79% | View |
| EEH-ZT1E221V | Panasonic Electronic Components | CAP ALUM POLY HYB 220UF 25V SMD | 72% | View |
| EEH-ZT1E221P | Panasonic Electronic Components | CAP ALUM POLY HYB 220UF 25V SMD | 72% | View |
| HZC227M025F24T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM POLY 220UF 20% 25V SMD | 69% | View |
Submit your RFQ for EEH-ZC1V221V and get a quote within 24 hours.
