Panasonic Electronic Components
CAP ALUM HYBRD 100UF 20% 35V SMD

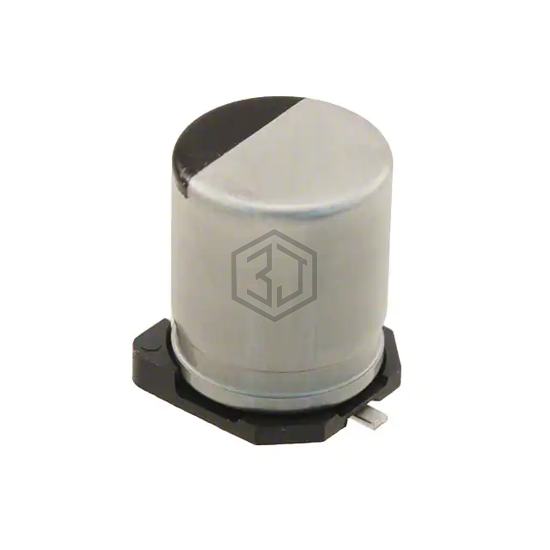

EEH-ZC1V101P is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM HYBRD 100UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 5,965
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 27mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 240 mA @ 100 Hz |
| Ripple Current @ High Frequency | 1.6 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| HBO101M1VTR-0608S | Surge | CAP ALUMHYB 100UF 20% 35V SMD | 90% | View |
| GYA1H101MCW1GS | Nichicon | CAP ALUM POL HY 100UF 20% 50V SM | 89% | View |
| GYA1H101MCQ1GS | Nichicon | CAP ALUM POLY 100UF 20% 50V SMD | 85% | View |
| 35PJV100M6.3X8 | Rubycon | CAP ALUM POLY HYB 100UF 35V SMD | 74% | View |
| HZC107M025X16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM POLY HYB 100UF 25V SMD | 74% | View |
| GYC1H101MCQ1GS | Nichicon | CAP ALUM HYBRD 100UF 20% 50V SMD | 66% | View |
Submit your RFQ for EEH-ZC1V101P and get a quote within 24 hours.
