Panasonic Electronic Components
CAP ALUM POLY HYB 120UF 50V SMD

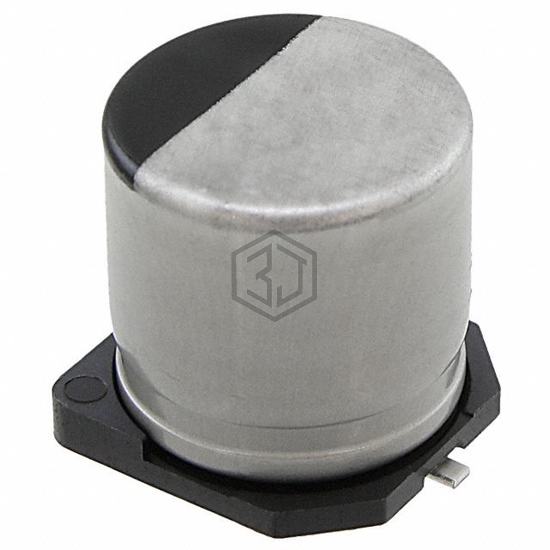

EEH-ZC1H121P is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY HYB 120UF 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 500
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 28mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 240 mA @ 100 Hz |
| Ripple Current @ High Frequency | 1.6 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| HSA1HM121GCRE00RAXXX | AiSHi Capacitors | HYBRID POLYMER ALUMINUM SMT | 100% | View |
| GYA1H121MCW1GS | Nichicon | CAP ALUMHYB 120UF 20% 50V SMD | 100% | View |
| A780MN127M1HLAV030 | KEMET | CAP ALUM HYB 120UF 20% 50V SMD | 91% | View |
| HBW121M1HTR-1010S | Surge | CAP ALUMHYB 120UF 20% 50V SMD | 90% | View |
| GYF1V121MCW1GS | Nichicon | CAP ALUMHYB 120UF 20% 35V SMD | 86% | View |
| EEH-ZT1H121V | Panasonic Electronic Components | CAP ALUM POLY HYB 120UF 50V SMD | 72% | View |
Submit your RFQ for EEH-ZC1H121P and get a quote within 24 hours.
