Panasonic Electronic Components

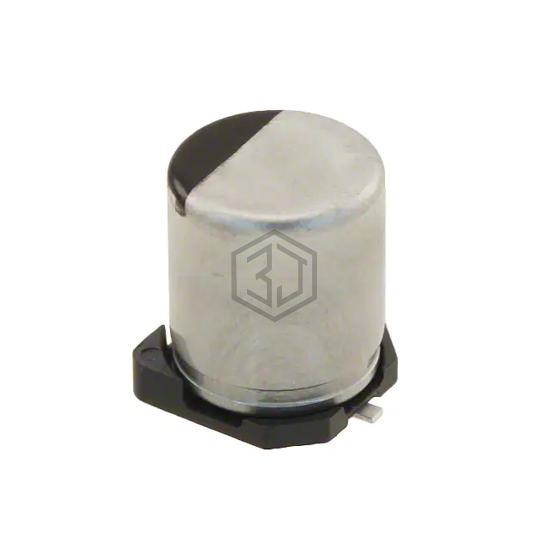

CAP ALUM HYBRID 68UF 20% 25V SMD
EEH-ZC1E680XP is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM HYBRID 68UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 3
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 30mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 210 mA @ 100 Hz |
| Ripple Current @ High Frequency | 1.4 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
Submit your RFQ for EEH-ZC1E680XP and get a quote within 24 hours.
