Panasonic Electronic Components

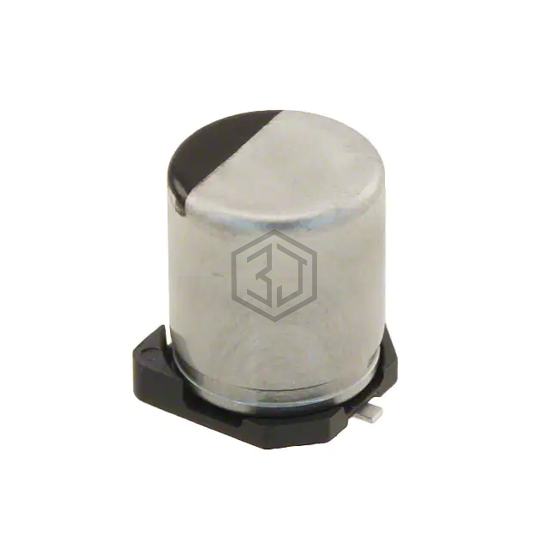

CAP ALUM POLY HYB 33UF 25V SMD
EEH-ZC1E330R is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY HYB 33UF 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 4,158
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 80mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 55 mA @ 100 Hz |
| Ripple Current @ High Frequency | 550 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL218397601E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY HYB 33UF 25V SMD | 100% | View |
| EEH-ZE1J330V | Panasonic Electronic Components | CAP ALUM POLY 33UF 20% 63V SMD | 75% | View |
| EEH-ZF1J330V | Panasonic Electronic Components | CAP ALUM POLY HYB 33UF 63V SMD | 71% | View |
| EEH-ZF1J330P | Panasonic Electronic Components | CAP ALUM POLY HYB 33UF 63V SMD | 71% | View |
| EEH-ZC1V330P | Panasonic Electronic Components | CAP ALUM HYBRID 33UF 20% 35V SMD | 66% | View |
| EEH-ZC1V330V | Panasonic Electronic Components | CAP ALUM HYBRID 33UF 20% 35V SMD | 66% | View |
Submit your RFQ for EEH-ZC1E330R and get a quote within 24 hours.
