Panasonic Electronic Components

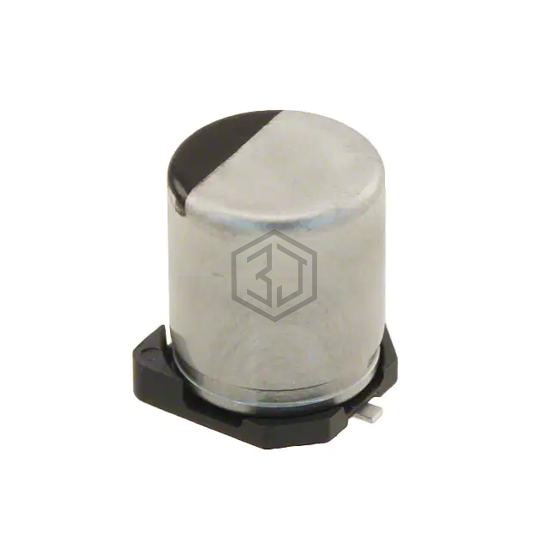

CAP ALUM HYBRID 22UF 20% 25V SMD
EEH-ZC1E220R is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM HYBRID 22UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 1,776
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 80mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 55 mA @ 100 Hz |
| Ripple Current @ High Frequency | 550 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL218397001E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY HYB 22UF 35V SMD | 90% | View |
| EEH-ZC1V220R | Panasonic Electronic Components | CAP ALUM POLY HYB 22UF 35V SMD | 90% | View |
| EEH-ZC1H220V | Panasonic Electronic Components | CAP ALUM POLY 22UF 20% 50V SMD | 64% | View |
| EEH-ZC1H220P | Panasonic Electronic Components | CAP ALUM POLY HYB 22UF 50V SMD | 64% | View |
| HZC226M050D16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM POLY 22UF 20% 50V SMD | 64% | View |
| EEH-ZC1J220XV | Panasonic Electronic Components | CAP ALUM POLY 22UF 20% 63V SMD | 55% | View |
Submit your RFQ for EEH-ZC1E220R and get a quote within 24 hours.
