Panasonic Electronic Components
CAP ALUM HYBRD 150UF 20% 25V SMD

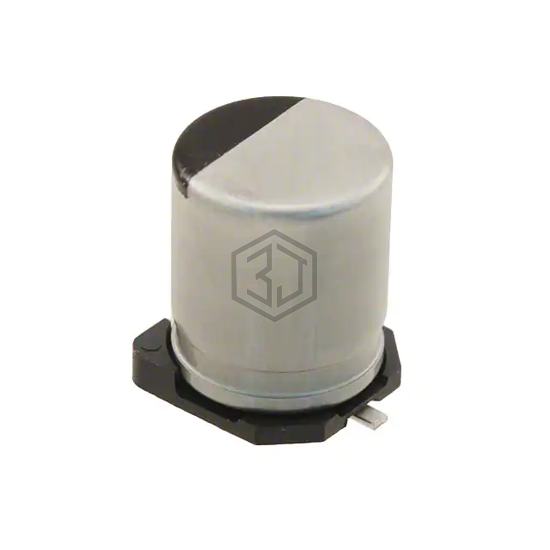

EEH-ZC1E151P is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM HYBRD 150UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 8,041
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 27mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 240 mA @ 100 Hz |
| Ripple Current @ High Frequency | 1.6 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| GYA1E151MCQ1GS | Nichicon | CAP ALUMHYB 150UF 20% 25V SMD | 100% | View |
| GYD1V151MCQ1GS | Nichicon | CAP ALUM POLY HYB 150UF 35V SMD | 84% | View |
| MAL218397004E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY HYB 150UF 35V SMD | 80% | View |
| HHXE160ARA151MF80G | United Chemi-Con | CAP ALUM POLY HYB 150UF 16V SMD | 75% | View |
| EEH-ZF1V151P | Panasonic Electronic Components | CAP ALUM POLY HYB 150UF 35V SMD | 65% | View |
| 35PFV150M8X10.5 | Rubycon | CAP ALUM POLY HYB 150UF 35V SMD | 63% | View |
