Panasonic Electronic Components

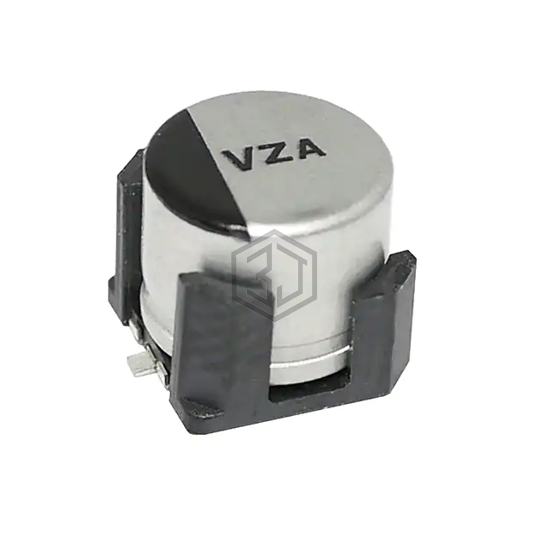

CAP ALUM POLY HYB 33UF 35V SMD
EEH-ZA1V330V is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY HYB 33UF 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 4,400
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 60mOhm |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 130 mA @ 100 Hz |
| Ripple Current @ High Frequency | 1.3 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.252" (6.40mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 875575745003 | Würth Elektronik | CAP ALUM HYBRID 33UF 20% 50V SMD | 79% | View |
| 875585961005 | Würth Elektronik | CAP ALUMHYB 33UF 20% 100V SMD | 77% | View |
| RSHVK330M4EEH0002E | Taiyo Yuden | CAP ALUM HYBRID 33UF 20% 63V SMD | 74% | View |
| MAL218297803E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY HYB 33UF 63V SMD | 69% | View |
| HZA336M080G24VT-F | Cornell Dubilier Electronics (CDE) | CAP ALUM POLY HYB 33UF 80V SMD | 66% | View |
| GYC1J330MCQ1GS | Nichicon | CAP ALUM HYBRID 33UF 20% 63V SMD | 54% | View |
Submit your RFQ for EEH-ZA1V330V and get a quote within 24 hours.
